Nitrogen generators - the past, present, and future
Did you know that nitrogen generators have been around since the 1980s? Membrane and PSA systems have all gotten more efficient as the technology became widely adopted in lab and industry settings by the late 20th century.
Market-driven innovation
Recent years have seen intensified R&D in liquid nitrogen (LN₂) generators, highlighting improvements in operational efficiency, digitalization, and sustainability. With over 30 years experience in the market, Noblegen Cryogenics has witnessed the market's evolution from the start.
Some of the latest advancements from 2025 onwards include:
- Enhanced compressor and heat exchanger designs that reduce energy consumption, improve performance, and contribute to sustainable opererations.

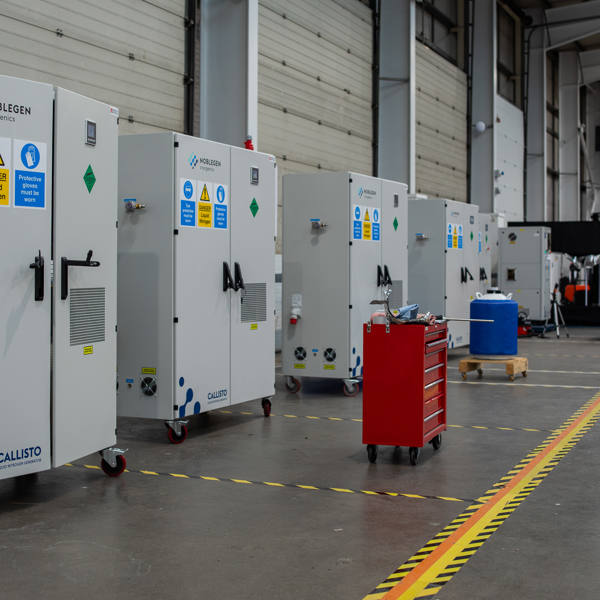

- Modular system architectures that allow scalable production customized for different flow requirements, from small-footprint laboratory-scale units to higher throughput needs producing 800 l+/day.

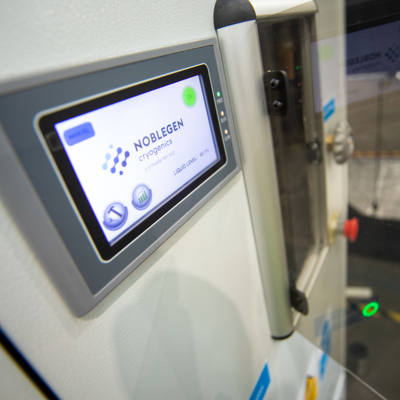

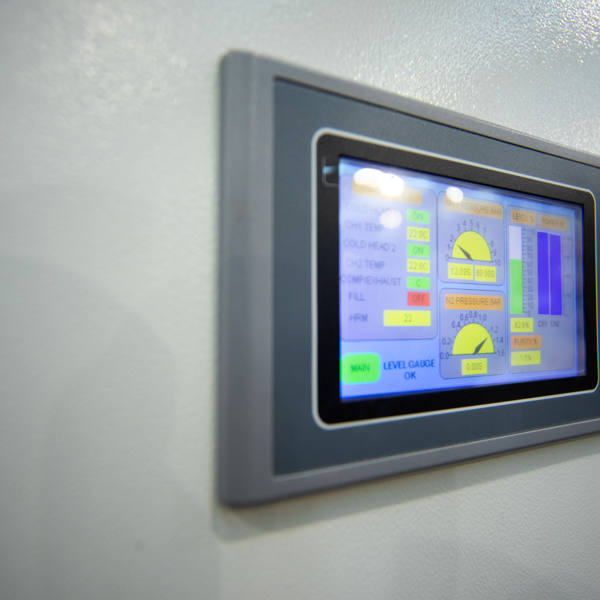

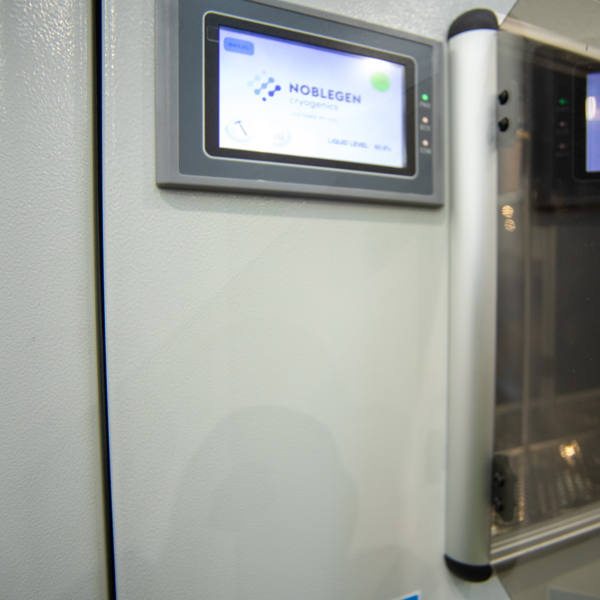

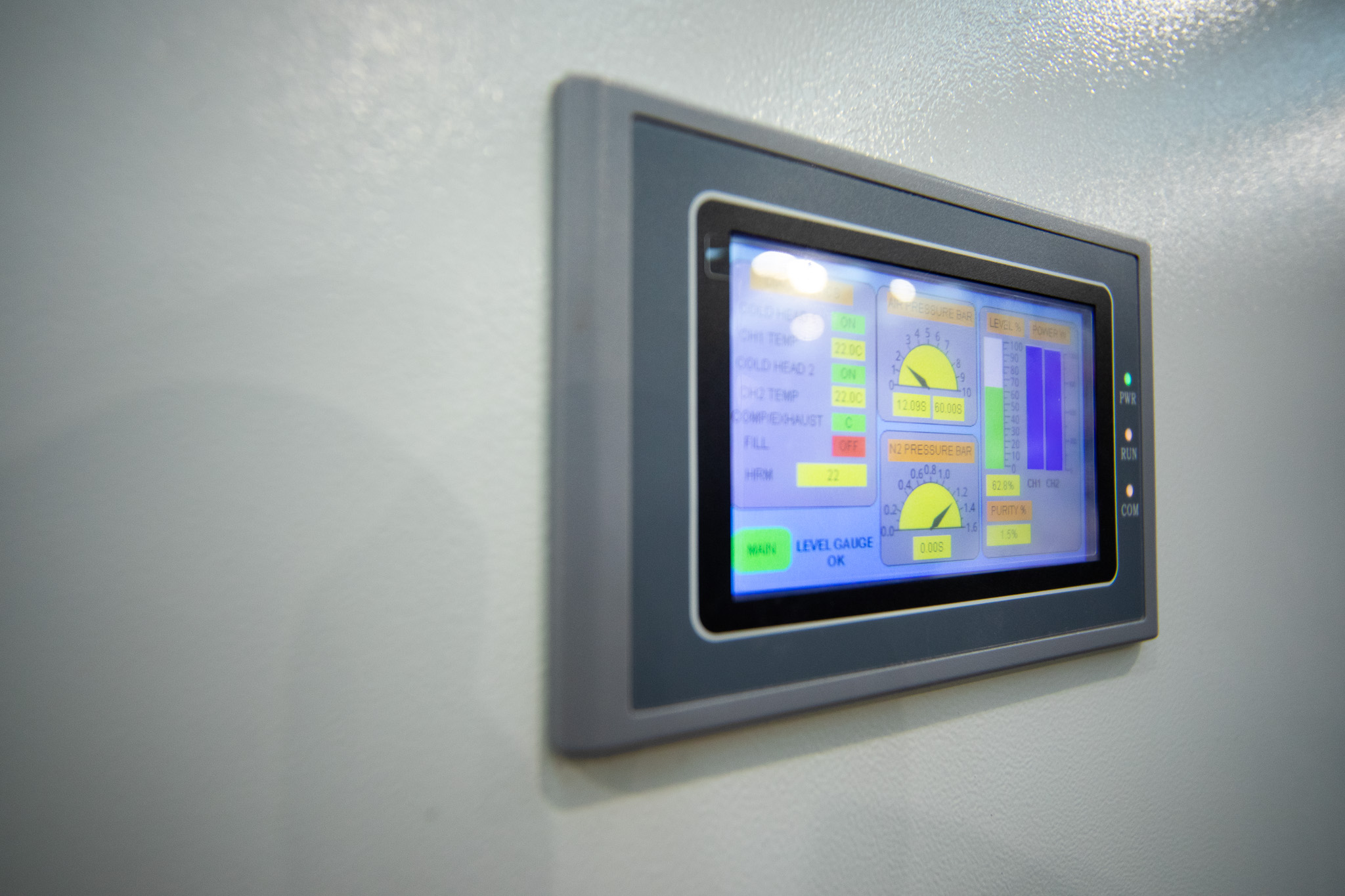

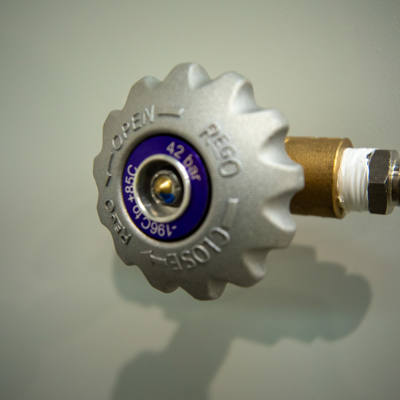

- Integration of automation tools for real-time performance monitoring and predictive maintenance, increasing reliability. User-friendly systems with built-in safety features, including intelligent level sensors and automatic stop-start systems to prevent overfilling.
How do liquid nitrogen generators work?
Liquid nitrogen generators were designed to make on-site production simpler, safer, and more efficient. They all work through the same principle: extracting nitrogen from ambient air, purifying it, and cooling it with a cryocooler to convert into liquid form.
The process always starts with compression - one or several compressors could be used depending on the output needed. The compressed air passes through multiple filtration stages to remove contaminants, before it reaches the separation stage. Using either PSA (Pressure Swing Adsorption) or membrane separation technology, nitrogen is extracted, up to the required purity level (often around 99% or higher). Once nitrogen gas is separated, it gets directed into a sealed vessel, where it circulates around the cold head of a cryocooler, which causes it to condense. Liquid is collected in the insulated vessel, ensuring minimal boil-off losses.

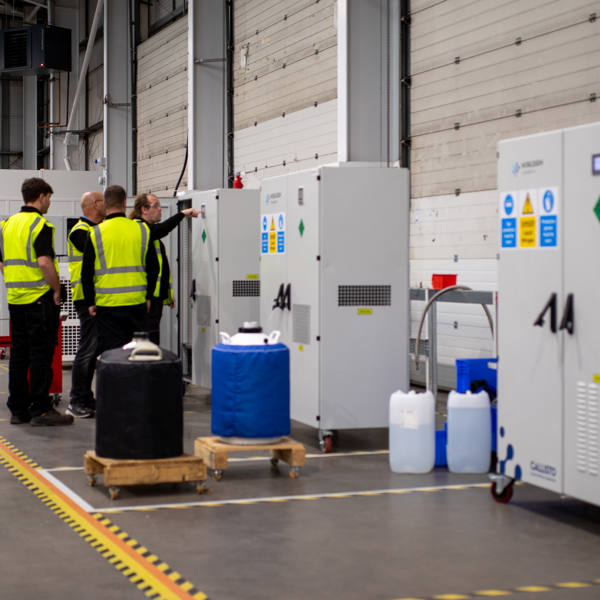

Smaller units can be extremely compact, designed to take up as little space as possible in medical facilities and laboratories, while larger, more robust generators require more space to meet higher demands.

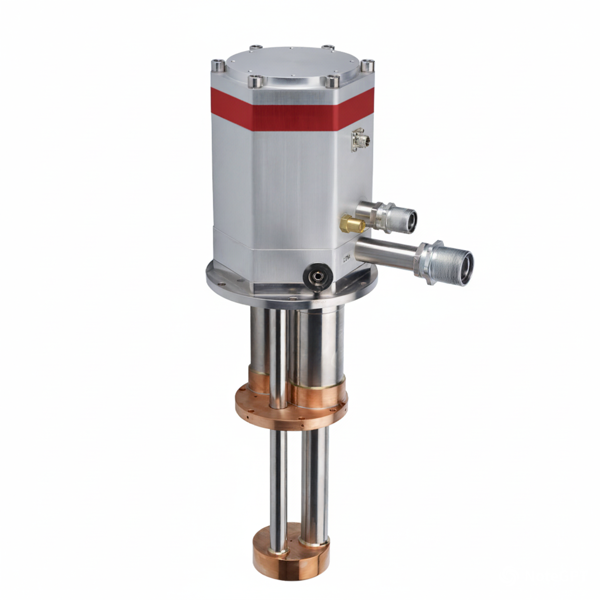

Cryocooler technology
Cryocoolers use closed thermodynamic cycle mechanical refrigeration to reach cryogenic temperatures. They cycle a gas (often helium or hydrogen) through compression and expansion, using heat exchangers and regenerators to move heat out. Modern designs are efficient, offering long operational life.
Two types of cryocoolers can be distinguished between ones using regenerative cycles (these use a regenerator to store and release heat, common in GM, Stirling, Pulse Tube) and recuperative cycles (these use a separate heat exchanger (recuperator) for heat exchange between high- and low-pressure streams, seen in JT and Brayton cycles).
Types of cryocoolers
| Cryocooler type | Cycle type | How it works | Benefits | Limitations |
|---|---|---|---|---|
| Gifford–McMahon (GM) | Regenerative | Uses a displacer with a rotary valve to alternate high/low‑pressure helium through a regenerator. | Reaches very low temps (2–4 K); robust; widely used (MRI, cryopumps). | Higher vibration; bulkier; lower efficiency vs Stirling/Pulse Tube. |
| Stirling | Regenerative | Uses pistons and a regenerator to shuttle heat during compression/expansion in a Stirling cycle. | High efficiency, compact, fast cooldown; common in aerospace & IR sensors. | Vibration from moving pistons; harder to reach <10 K. |
| Pulse Tube | Regenerative | Creates cooling with pressure oscillations; no moving parts in the cold head. Regenerator + phase shifters control flow. | Ultra‑low vibration, long life, low maintenance; great for quantum & space. | Slightly lower efficiency than Stirling; complex to tune. |
| Joule–Thomson (JT) | Recuperative | High‑pressure gas expands through a JT valve/orifice and cools; recuperator precools incoming gas. | No cold moving parts; simple, compact; very fast cooldown. | Requires high‑pressure supply; lower efficiency; temperature depends on gas mix. |
| Brayton | Recuperative | Gas is compressed, precooled in a recuperator, then expanded through a turbine for efficient cooling. | High efficiency, low vibration, good for 20–80 K; used in aerospace & labs. | Mechanically complex; turbine sensitive to contaminants; typically larger. |
Nitrogen separation: PSA and membrane
On-site LN₂ generation typically begins with nitrogen separation using either PSA or membrane technology.
Pressure Swing Adsorption (PSA)
PSA nitrogen generators use carbon molecular sieve (CMS) to selectively adsorb oxygen, carbon dioxide, and moisture from compressed air under pressure, leaving a high‑purity nitrogen stream. By cycling between pressurisation and depressurisation, the system continuously produces nitrogen at purities ranging from standard industrial grades up to ultra‑high purities of 99.999%.
PSA technology is ideal for applications where consistent, high‑purity nitrogen is critical, such as electronics, pharmaceuticals, and food packaging, offering strong performance, scalability, and cost efficiency for higher flow demands.
Membrane Technology
Membrane nitrogen generators separate gases using bundles of hollow‑fibre membranes through which oxygen, water vapour, and other fast‑permeating molecules pass more quickly than nitrogen. The result is a simple, robust, and continuous system with no moving parts in the separation stage, making it exceptionally low maintenance and highly reliable.
Membrane units typically deliver nitrogen purities up to around 99.5%, which is ideal for applications such as fire prevention, oil & gas, and general inerting where lower purity is acceptable. Their compact footprint, rapid start‑up, and energy efficiency make membrane systems a practical choice for remote sites or operations prioritising simplicity and uptime.
Sustainability and decentralization
A major shift has been seen moving LN₂ production closer to consumption points, reducing dependence on bulk transport. With organizations looking to reduce their carbon footprint and impact on the environment, on-site generation has grown in popularity as a sustainable solution that can:
- Eliminate heavy/frequent transport, logistics, and related greenhouse gas emissions.
- Align supply with actual use, reducing boil-off and waste during transport, delivery and decanting.
- Support the adoption of energy recovery solutions and clean-power utilization to minimize carbon footprints, especially in sensitive sectors including pharmaceuticals and academia.
Scalability
Modern liquid nitrogen generators now support a wide range of flow capacities:
- Portable or lab-scale units using cryocoolers or MRJT cycles are ideal for production rates between 1–10 L/day.
- Mid-to-large scale systems can deliver tens to hundreds of liters per day by integrating PSA/membrane separation with cascade cooling.
This flexibility ensures the right setup for various applications; from scientific research and cryopreservation to semiconductor manufacturing.
