Titan LN120

Get a quote

Overview

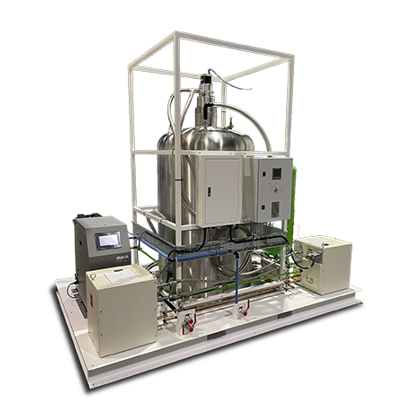

The Titan series is a range of reliable, highly adaptable, skid configured, on-site liquid nitrogen generators. The open skid design allows for larger production and storage of LN2. Titan generators support numerous applications in laboratories, research institutes, universities, hospitals, dermatology clinics and more.

The Titan LN120 has an internal storage volume of 300 litres allowing for quick and efficient large-scale dispensing, or direct transmission to the application without having to transfer from bulk.

Application types

NMR, IVF, Animal Husbandry

Part number

NG20-0024

Status

Available

Features

  • Versatile skid mounted design
  • No loss pressure system - eliminate boil-off loss
  • Intelligent level sensor
  • Automatic standby when liquid nitrogen storage full
  • Control panel with interlock for safe operation
  • Boost function increasing pressure and production without
    higher energy requirements
  • Built-in oxygen analyzer with alarm
  • Vacuum prevention system
  • Nitrogen pulse flow system ™
  • Low noise
  • Water cooled

Specifications

Gas

Liquid nitrogen production (l/day): 120 @ standard 1.5 bar
Liquid nitrogen purity: >99% (<1.0% O2)
Liquid Nitrogen tank volume (litres): 300
Compressed air quality: BS1.2.1
Compressed air requirement (Nm3/hr) @7 bar g min: 15 (9 CFM)

Site & Installation

Power consumption (Kw) excluding air compressor: 13.8
Power supply (3Ø + neutral and earth): 380/400/415V - 50Hz or 460/480V - 60Hz or 200V - 50/60Hz

Dimensions & Weight

LN2 enclosure footprint: 2m x 2m x 1.8m
LN2 enclosure weight: 1300kg
