Liquid nitrogen (LN₂) is used in precision calibration processes across multiple industries. It plays a key role in two-point (also referred to as multi-point) calibration of highly sensitive instruments, such as microwave radiometers, temperature sensors, aerospace level sensors, and analytical chemistry equipment like NMR and GCxGC systems.
These applications rely on LN₂ for its stable, low-temperature reference point, ensuring accuracy in environments where precision is non-negotiable.

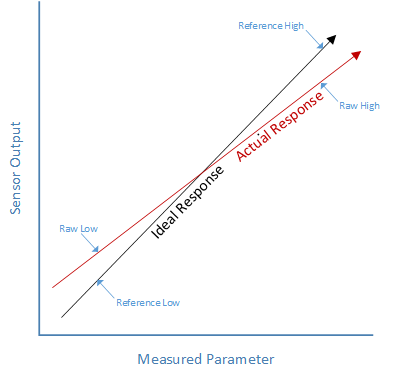

Two-Point Calibration Applications
Calibration of Temperature Sensors
Liquid nitrogen baths or comparators are essential for calibrating temperature-sensing devices, including thermocouples and standard platinum resistance thermometers (SPRTs), especially for ultra-low temperature environments such as cryogenic freezers. Techniques like the method of instantaneous comparisons enable high-accuracy calibration by leveraging LN₂’s precisely known boiling point.
Aerospace Industry
In aerospace, LN₂ serves as a safe and practical cryogenic fluid for multi-point calibration of capacitance-type level sensors used in liquid hydrogen (LH₂) and liquid oxygen (LOX) systems. Accurate calibration is vital for cryogenic valves and pumps in satellite and space vehicle manufacturing, where safety and performance depend on precise level sensing.
Microwave Radiometry
Liquid nitrogen-cooled blackbody targets act as the primary cold standard for calibrating microwave radiometers, which measure atmospheric parameters. The two calibration points typically include:
- Cold load: An LN₂-immersed target providing a stable low-temperature reference.
- Hot load: An internal target near ambient temperature. This “hot-cold” calibration method ensures accurate characterization of system gain and offset.
Analytical Chemistry (NMR & GCxGC)
In NMR spectroscopy, LN₂ is used in nitrogen exchangers for variable temperature experiments, requiring precise calibration of temperature control units. Similarly, in comprehensive two-dimensional gas chromatography (GCxGC), multiway calibration techniques are applied to manage complex datasets, ensuring reliable analytical results.
What is the Role of Liquid Nitrogen in Sensor Calibration?
Microwave radiometers require regular absolute calibration for accuracy. LN₂ provides a stable cold reference point at its boiling temperature (approximately 77.4 K or -195.8 °C), enabling sensors to be calibrated across a wide temperature range. This ensures data integrity for scientific and industrial applications.
Best Practices for LN₂ Use in Two-Point Calibration
- Safety First
Wear appropriate cryogenic PPE and install generators in well-ventilated areas to prevent oxygen displacement. Plan for safe access routes for staff and contractors. - Check the Environment
Maintain stable conditions (temperature, humidity, vibration). Avoid calibration during rain or high humidity. - Prevent Contamination
Keep sensors clean and handle LN₂ carefully. In open baths, monitor for oxygen contamination, which can raise the boiling point over time.

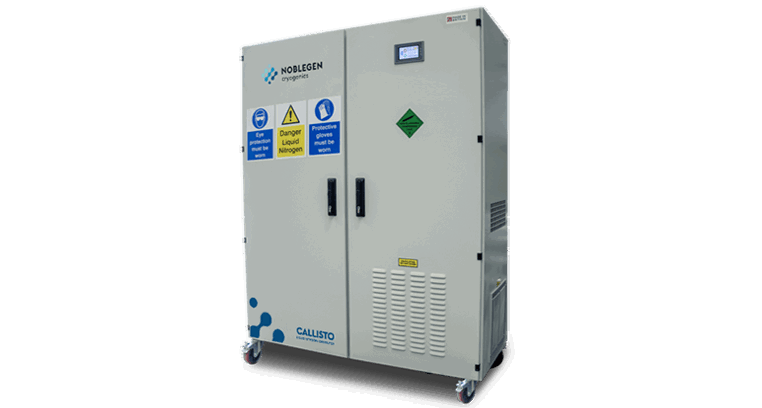

Benefits of On-Site LN₂ Generation
- Continuous Supply
On-demand LN₂ eliminates delivery delays, ensuring 24/7 access for remote or high-frequency testing environments. - Improved Data Quality
Proper calibration prevents compromised readings, safeguarding research integrity and operational reliability. - Sustainability
On-site generation reduces greenhouse gas emissions by eliminating cryogenic tanker transport.
