What is cryomilling?
Cryogenic grinding, also known as cryomilling, freezer milling or freezer griding, is a material processing technique that grinds materials into fine particles by cooling them to extremely low temperatures. This process is primarily used to refine the grain size of materials and disperse fine particles of a specific size, thereby enhancing material strength.
How is LN2 used in cryomilling?
LN2 cryomilling is used to mill thermally sensitive, elastic, or volatile materials like food products, plastics, and pharmaceuticals by embrittling them with liquid nitrogen at very low temperatures (-196°C), creating a fine, dry powder in one step. Cryomills can use liquid nitrogen in different ways, such as continuous circulation or direct cooling, depending on the material, particle size and equipment setup:
-
Direct Cooling (Batch Mode)
-
LN₂ is added directly into the milling chamber or sample container, rapidly immersing the feed material.
-
Effective for small-scale or laboratory milling where maximum cooling is needed at the start of processing.
-
Drawback: Higher LN₂ consumption due to direct boil-off and less efficient temperature control during longer milling runs.
-
-
Continuous Circulation (Closed-Loop Systems)
-
LN₂ is continuously circulated around the milling chamber or injected in controlled amounts during processing.
-
This maintains a consistent low temperature throughout the milling process, preventing localized heating from mechanical impacts.
-
This method reduces evaporation losses compared to direct addition, making it more efficient and cost-effective for large-scale or continuous milling operations.
-
it is often used in industrial applications where uniform cooling and reduced LN₂ consumption are critical.
-
-
Hybrid Cooling Strategies
-
Some cryomilling systems use a combination of pre-cooling with direct LN₂ immersion followed by continuous circulation during milling.
-
This ensures rapid embrittlement at the start while maintaining steady-state cooling during extended runs.
-
Cryomilling Applications using LN2
Food Industry
For milling items like coffee, herbs, nuts, and cocoa, cryomilling preserves flavor and aroma, increases productivity, and produces uniform granules. The extreme cold makes otherwise elastic or oily food brittle, so it fractures cleanly instead of smearing.
The benefits of cryomilling for the food industry include preserving volatile flavor compounds, producing uniform powders for instant mixes, improving shelf life, and enhancing productivity by preventing equipment fouling from sticky residues.
Pharmaceuticals

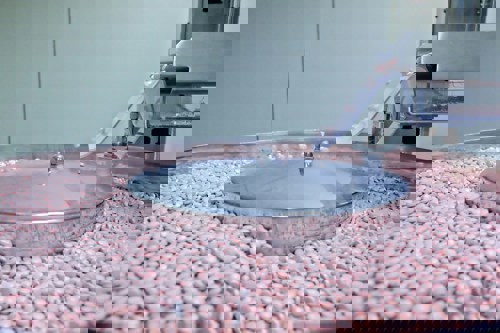

Drug substances, particularly those that are heat-sensitive or poorly soluble, are cryogenically cooled with LN₂ during milling. This maintains drug stability and prevents amorphous-to-crystalline transformations caused by heat. It is effective for drugs with low aqueous solubility and is a one-step process for preparing particles.
Benefits for the pharmaceutical industry are producing micronized or nanonized drug particles with higher surface area, improving solubility, dissolution rate, and bioavailability. LN₂ milling also minimizes contamination risks and allows one-step processing without additional stabilizers.
Sample Preparation
In laboratory settings, biological or polymer samples are quenched in LN₂ before mechanical grinding. This converts soft, elastic, or sticky specimens into brittle solids that fracture under milling.
The benefits for such research&diagnostic applications include producing homogeneous powders suitable for downstream chemical analysis or extraction.
Plastics and Polymers
Elastic or rubbery polymers such as caoutchouc, nylon, Teflon, or thermoplastic elastomers are embrittled with LN₂ before and during milling. This overcomes their normal ductility, which resists grinding at room temperature.
Cryomilling produces fine powders for blending, recycling, coatings, or additive manufacturing, making them suitable for applications including industrial machinery, automotive parts, medical devices, and consumer products. An additional benefit is this technique also avoids thermal degradation or crosslinking that would occur under conventional grinding.
The Benefits of Cryomilling
Cryomilling offers several advantages over conventional milling techniques. By operating at extremely low temperatures, it preserves the inherent properties of heat-sensitive materials, preventing degradation or loss of volatile compounds. The process produces highly uniform, micronized, or even nanoscale particles, which can improve solubility, reactivity, or texture.
Additionally, the cold environment minimizes oxidation and contamination, while refining the grain structure of metals and polymers can enhance their mechanical strength and hardness. Beyond these material benefits, cryomilling is also more efficient, often requiring shorter milling times and enabling one-step processing that reduces overall production time.
Best Practices for Using Liquid Nitrogen in Cryomilling
To maximize the effectiveness, reproducibility, and safety of cryomilling operations, the following best practices should be observed:
-
Proper Material Handling: Pre-freezing the material when possible can improve brittleness and milling efficiency. Always try to avoid overfilling the milling container, as excessive material may not cool uniformly, leading to inconsistent particle sizes. Samples shoud be stored and transferred in sealed containers to prevent condensation and ice formation, which can interfere with milling efficiency.
-
Consistent LN2 Usage: Use sufficient liquid nitrogen to maintain consistent low temperatures throughout the process. Intermittent cooling can allow localized warming, reducing efficiency and risking partial softening of the sample. Optimize flow rates to balance cooling with sample integrity.
-
Monitoring Equipment: Ensure mills and containers are designed for cryogenic conditions to prevent thermal shock or damage. Continuously monitor chamber temperature and milling parameters to ensure reproducibility and use cryo-compatible tools (e.g., precooled spatulas, insulated tongs) to minimize contamination and sample warming during handling.
-
Safety Measures: Personal protective equipment (PPE) is essential, as LN2 can cause severe frostbite and asphyxiation risks. Make sure to operate in well-ventilated areas as LN₂ vapor displaces oxygen and can cause asphyxiation in confined spaces. Oxygen sensors are recommended in larger facilities.
Why Choose On-Site LN2 Generation?

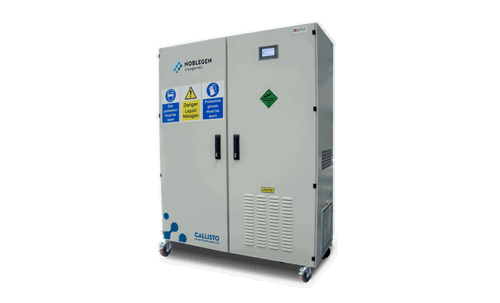

On-site liquid nitrogen generation provides significant advantages for cryomilling operations. It eliminates the need for frequent deliveries, reducing transportation costs, while ensuring a consistent and reliable supply of LN2 to minimize production downtime.
Producing LN2 on-site reduces the risks associated with handling and storing large volumes of delivered nitrogen, enhancing safety and regulatory compliance. From an environmental perspective, on-site generation lowers the carbon footprint compared to relying on transported LN2, making it a more sustainable option for continuous cryomilling operations.
Conclusion
Cryomilling with liquid nitrogen is a powerful and versatile technique that enables the efficient processing of materials that are otherwise difficult or impossible to mill under ambient conditions. By leveraging LN₂’s extreme cooling capacity, thermally sensitive, elastic, and volatile materials can be embrittled and reduced to fine powders while preserving their chemical integrity and functional properties. Whether applied in food processing, pharmaceuticals, polymers, metals, or research sample preparation, LN₂ ensures consistent particle size, enhanced stability, and higher product quality.
Advances in cryomill design (like continuous LN₂ circulation systems) further improve energy efficiency, reduce evaporation losses, and enable scalable industrial applications. Reliable on-site LN₂ supply also plays a critical role, ensuring uninterrupted milling operations and consistent process outcomes.
