Triton LN20

Get a quote

Overview

The Triton Series is a range of reliable, compact and highly efficient on-site plug and play liquid nitrogen generators.

Supporting numerous applications in laboratories, research institutes, universities, hospitals, dermatology clinics and many more, the small footprint, low power consumption and low noise system make the Triton one of the most user-friendly on-demand liquid nitrogen generators available on the market today.

Triton liquid nitrogen generators come with numerous safety features as standard, giving you complete peace of mind and a far safer, dependable and more convenient alternative to liquid nitrogen deliveries. Simply connect the power and press ‘start’ for the machine to automatically produce liquid nitrogen for use when ready.

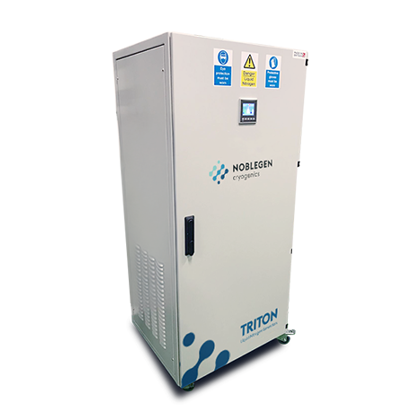

The Triton LN20 is one of our larger single cabinet liquid nitrogen generators with a production rate of 20 litres per day and comes with a 1.5m vacuum insulated hose as standard. Triton LN20 is ideal for space constraint facilities where more frequent and higher volumes of liquid nitrogen are required.

Application types

IVF, Animal husbandry, Bio-preservation, Pharmaceuticals, Dermatology, Semi-conductor research

Part number

NG20-0002

Status

Available

Features

  • Plug and play
  • High purity sterile liquid nitrogen
  • Intelligent level sensor
  • Automatic standby when liquid nitrogen storage full
  • Colour touch screen with real time display
  • Vacuum protection system
  • Nitrogen pulse flow system ™
  • Built-in oxygen analyser
  • Sterile filtration
  • Low power consumption

Specifications

Gas

LN2 production (l/day): 20 @ standard 1.5 bar
LN2 purity: >99% (<1.0% O2)
LN2 tank volume (liters): 35
LN2 pressure (bar g): up to 1.5

Site & Installation

Power consumption: 3.2kW
Power supply (1Ø + neutral and earth): 230VAC 50/60Hz
Noise level: <60 dBA

Dimensions & Weight

LN2 enclosure foot print (on wheels): 0.89m x 0.72m x 1.91m (35 x 28.3 x 75.1 in)
LN2 enclosure weight: 352kg (776 lbs)
